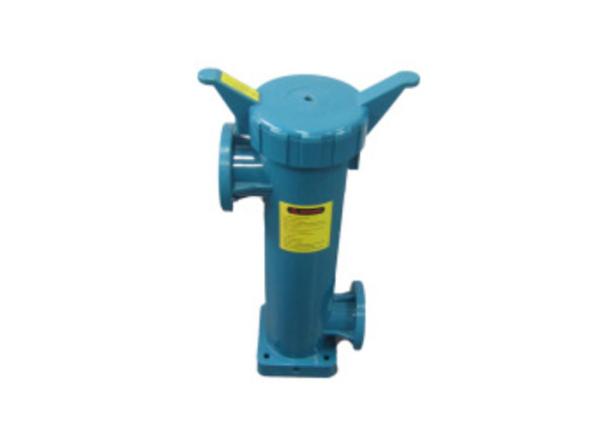

Single Bag #4 #5 Filter Housing Corrosion Resistance Bag Filter For Electroplating

Features:

1. The filter is formed in one piece, the structure is sturdy, safe and reliable, the installation is simple and convenient, there is no welding place, and it is economical and durable. PPH material can be used to filter most chemical liquids and has corrosion resistance to most chemicals.

2. The screw cap can be opened and closed freely, and the flange-type access interface avoids easy leakage and cracking. The filter bag and the filter barrel are in close contact, and any filter residue cannot penetrate the equipment.

3. It is convenient to replace the filter bag with different filtration accuracy.

4. Fluoroplastic rubber or silicone sealing ring, suitable for a wide range of acid-base and temperature liquids.

5. The polished barrel wall is convenient for manual cleaning or flushing at the appropriate location.

6. Four-hole mounting square base improves the ease of installation and strengthens the stability of the filter barrel.

7. The ring mouth of the filter bag is closely attached to the inner wall of the filter to effectively prevent the side leakage of the liquid.

Model specification:

Parameter table

Model	Number of Bag	Design pressure	Flow rate (M2/H)	Filter area (M2)	Filtration accuracy (μm)	Inlet and outlet diameter (MM)	Material	Operating temperature (°C)
WY-DSL10-P1-440	1	1.0Mpa	10	0.12	0.5-500	40	PPH	90
WY-DSL20-P1-550	1	1.0Mpa	20	0.25	0.5-500	50	PPH	90
WY-DSL40-P1-265	1	1.0Mpa	40	0.45	0.25-500	65	PPH	90

Size	#4 Bag Filter (MM)	#5 Bag Filter (MM)	#2 Bag Filter (MM)
A	610	805	1060
B	445	595	855
C	140	140	152
D	55	55	60
E	124	174	202
F	280	396	510
G	JIS 1.5"	JIS 2"	JIS 2.5"
H	265	324	480
I	164	210	250
J	120	155	186
K	16	18	18

FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.
Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.
Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.
Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.
Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.
Q: How late can you ship?
A: Normally 7 days after comfirmed the order.
PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
